32AMP 250V EV + Electric Car Charger

Share to:
Availability:
Quantity:
  • T111-0005
  • TOKING

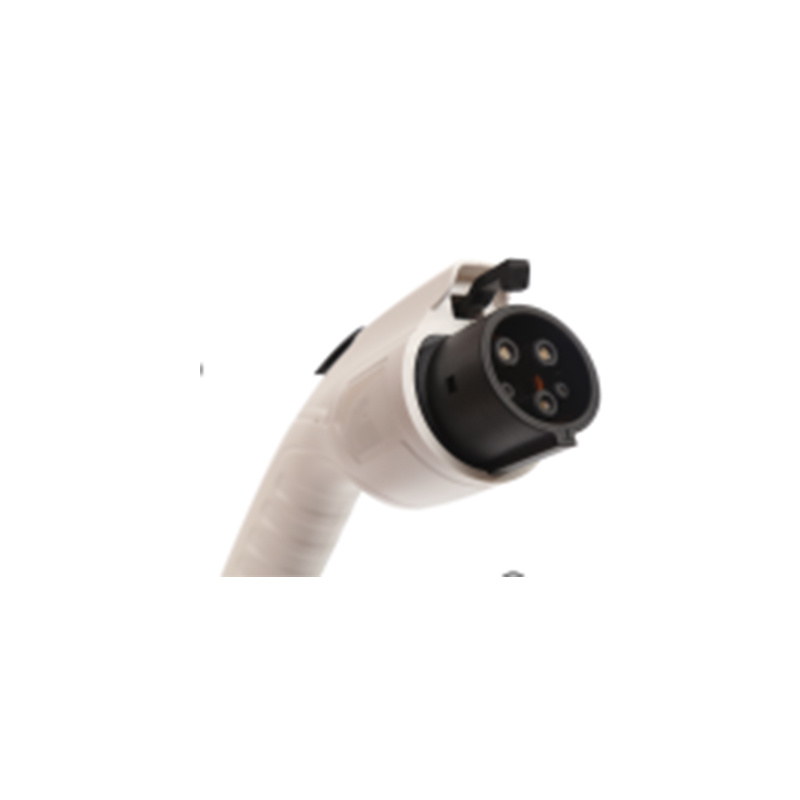

32A  Type1 to Type2  EV charging cable (5M)
32AMP 250V EV + Electric Car Charger
32AMP 250V EV + Electric Car Charger
32AMP 250V EV + Electric Car ChargerRated Current:  32A

Operating Voltage: 250V

Mechanical life: No-load plug in/pull out> 10000 times

Coupled insertion force: >45N<80N

Im pat of external force: can afford 1 m drop and 2t vehicle run over pressure

Insulation resistance:>1000 MΩ(DC500V)

Terminal temperature rise: <50K

Withstand voltage: 2000V

Contact Resistance: 0.5mΩ Max

contact bush: Copper alloy, silver plating

Pin: Copper alloy, silver+ thermoplastic on the top

Operating temperature: -30ºC ~+ 50ºC

Cable specification: 32A 3*6mm2+2*0.5mm2

Cable color: black

Charging standard: IEC62196-2 Jl 772

Type1 EV charging cable

Type2 to Type2 EV charging cable

Our products are exported to North America, Australia, the Middle East, Africa, Southeast Asia, South America, and Europe.

We are positive to enlarge our markets in other countries.

32AMP 250V EV + Electric Car Charger
CE/GS/ROHS/EMC
32AMP 250V EV + Electric Car Charger
welcome your inquiry!
