Product Description
Capacity:5000W(25.6V/200Ah)
Dimensions (L*W*H):720 x 520 x 574 mm
Net weight of product:67KG
Battery specification:
Rated Battery Voltage: 25.6V DC
Battery Capacity: 200Ah
Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit, Overheat Protection, etc.
Battery Cycle Count: ≥ 2000 cycles (80% capacity)
Battery Dimensions: 520×269×220mm
Solar controller specification:
Constant voltage:29.2V DC
Constant current:20A
Maximum input voltage:36V DC
AC input:
AC input voltage:230VAC +/- 10%
Constant voltage charging:29.2V DC
Constant current charging current:30A
Floating charge voltage:27.2V DC
Inverter specification:
Rated Output Power/Maximum Power: 4.5kW/5kW
Peak Power:10kW
AC Output Voltage Range: 230V±10V
AC Output Frequency: 50Hz
Output Waveform: Pure Sine Wave
Cooling Method: Fan Cooling
Inverter Protection Functions: Overload, Overheat, Short Circuit, Reverse Connection Protection, etc.
Company Profile
Found date: 2003
Plant area:4 Buildings 24000m2
Employee: 400(Technician:30 QE:20)
Main products: Inverter generator ,Power station,DC to AC Inverter(car inverter,modified inverter, pure sine wave inverter, soft start inverter,)BATTERY CHARGER, STRIP INVERTER ECT....
Certificate:ISO 9001,BSCI
Product certificate: CE‐EMC/LVD,RoHS,TUV,E‐Mark,ETL,RCM(C‐TICK)
Monthly output: 100000pcs
Quality control

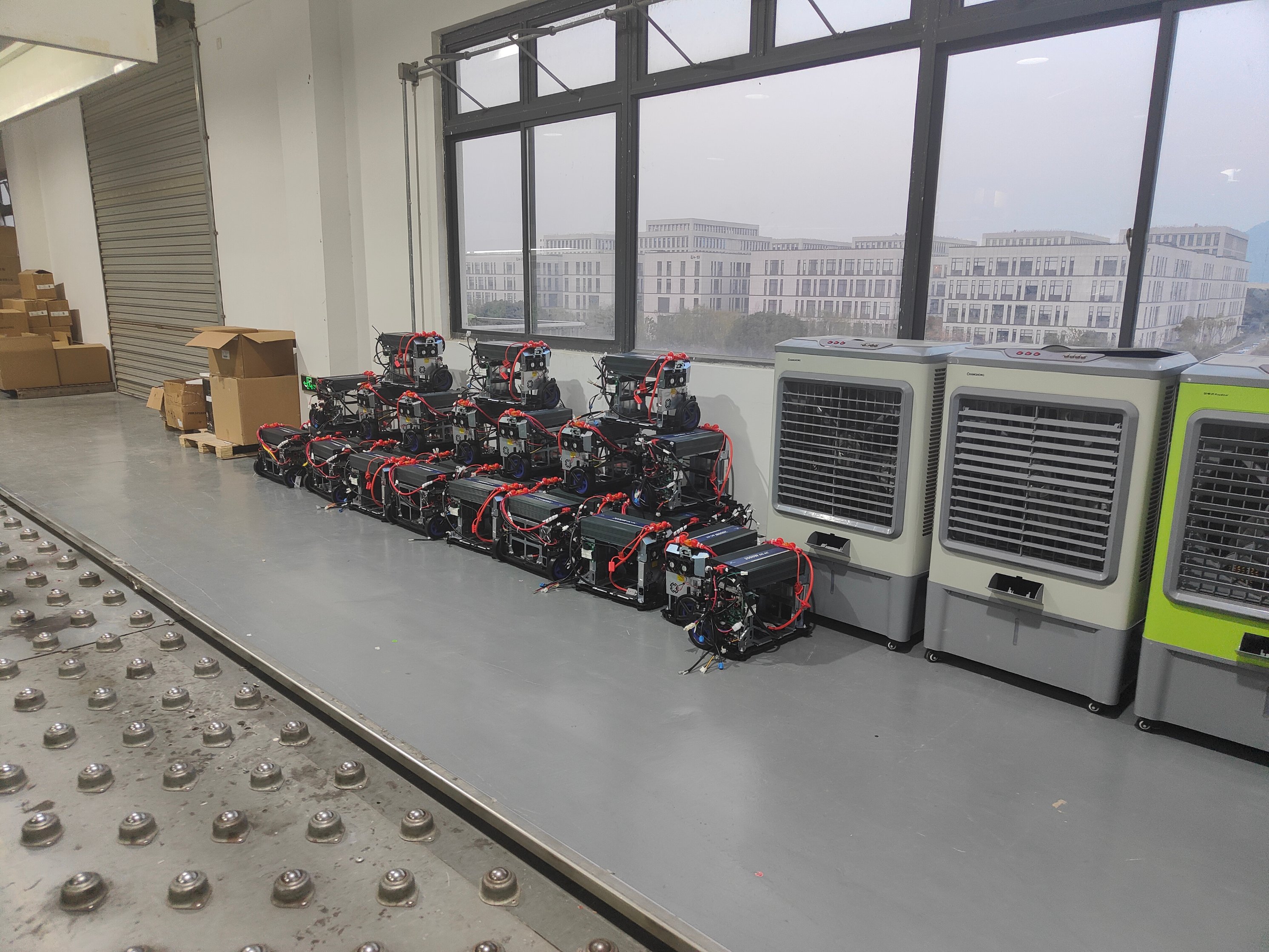

Workshops
Certifications
FAQ
1,Q:What is the MOQ?
A: It depend on the products model .in gernarally the MOQ of formal order is 300pcs.Mostly MOQ can be discussed .
2, Q: What is the payment terms?
A: T/T ,LC ,Western union ,Paypal.
3,Q: How to order?
A: Step1:Pls tell us what model and quantities you need;
Step2:We will send you price and make PI for you to confirm the order details;
Step3:when confirmed the details ,you can arrange the deposit and we will arrange production .
Step4:When goods finished ,we will deliver them within the stipulated time
4, Q: When will make delivery ?
A: Sample order :within 7working days .
Formal order: 30-45days .
OEM order:50-60days
5,Transportation
Transported by Sea freight ,Air freight ,DHL,UPS,EMS.FEDEX ,TNT,Air
6,Q:What is the Warranty ?
A: 1year warranty for the products ,and Exceed the 12months ,we can provide the spare parts .
7,Q: Do you have certificates ?
A:Our factory have ISO9001, BSCI.And Products with the CE,ROHS,E-MARK,ReaCH,ETL,SAA
Our products are exported to North America,Australia,Middle East,Africa,Southeast of Asia,South America and Europe.
We are positive to enlarge our markets in other countries.
Welcome your inqury!
Frequently asked questions
What applications does the 5000W portable power inverter system suit?
The 5000W portable power inverter system converts DC battery power into AC power for RVs, boats, trucks, off-grid cabins and backup power. Size it against the continuous wattage of the appliances it will run rather than their start-up surge, and check the DC input against your battery bank before ordering.
Which battery voltage does the 5000W portable power inverter system support?
The 5000W portable power inverter system is offered for common 12V, 24V and 48V battery systems; confirm the exact input range on the specification sheet before ordering. Matching input voltage to the battery bank keeps the unit inside its rated range, and is the first check made on every inquiry.
Is the 5000W portable power inverter system available for OEM/ODM supply, and what quality certification applies?
Yes. The 5000W portable power inverter system is supplied on an OEM/ODM basis with custom output, housing, connectors and packaging. AUTONIK POWER is a TOKING brand founded in 2002 in Hangzhou, China, and TOKING INDUSTRIAL VIETNAM CO., LTD. holds ISO 9001:2015 certification (no. 102726012000138000).
How are lead time, MOQ and samples handled for this product?
Lead time and minimum order for the 5000W portable power inverter system depend on the model and the level of customisation, so both are quoted case by case instead of being fixed online. Send the quantity, configuration and destination port to manager@tkindustrial.cn and a firm lead time, MOQ and sample plan are confirmed against your order.
